AircraftAdvanced
4.8(64 verified builders)

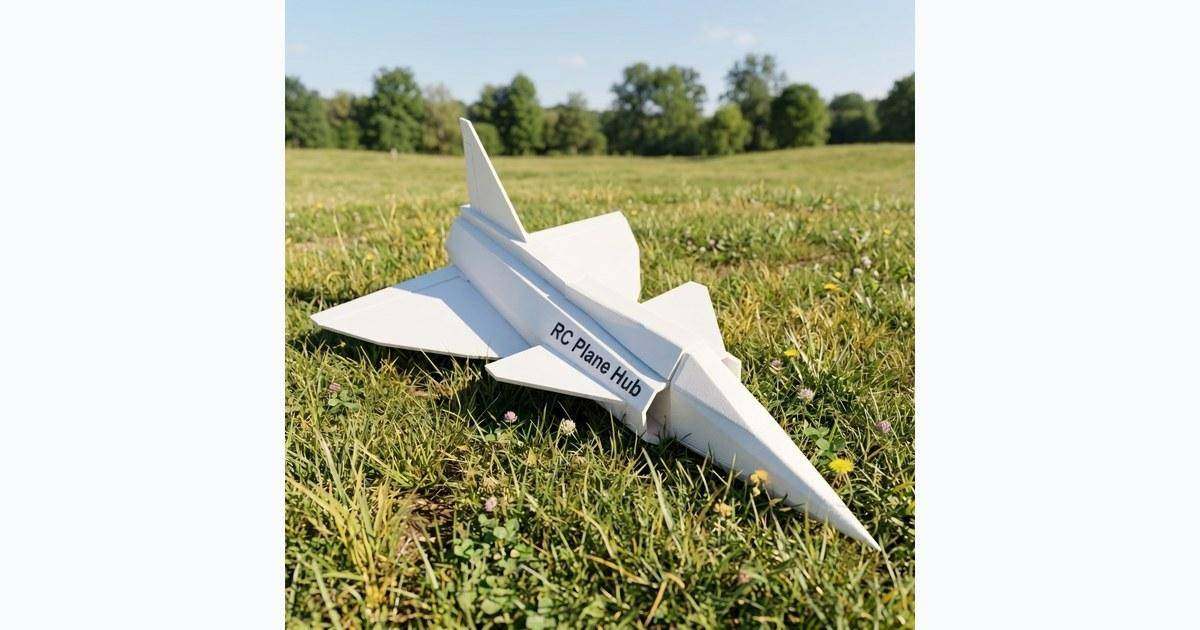

FT-Viggen Aircraft
25.5" (700mm) wingspan canard delta fighter jet built from 4 Fliteboard Pro sheets. Supports high-power pusher prop or 70mm EDF with optional thrust vectoring.
Wingspan700 mm (25.5 in)
Flying Weight850 g
Assembly Time35-45 mins
Pan-India Safe Delivery in heavy-duty reinforced corrugated cartons
100% Maiden Flight Guarantee: Free replacement laser sheets if broken on first toss
Step 1: Choose Your Completion Level
Kit Builder Configurator
All parts guaranteed 100% compatible
Included in this tier:
Complete Ready-To-Fly Starter Kit Bill of Materials7 Items Included
Total Price (excl. GST)
₹8,649+ GST
Everything in the Airframe + Power Combo
FlySky FS-i6X 6-Channel 2.4GHz AFHDS 2A Radio Transmitter
FlySky FS-iA6B 6CH Receiver with telemetry support
3S 11.1V 1500mAh 45C High-Discharge LiPo Battery Pack
Compact B3 Pro 2S/3S Automatic LiPo Balance Charger
Low-Temperature Hot Glue Gun + 10x Foam-Safe Glue Sticks
Field Maiden Flight Checklist & Center of Gravity (CG) Ruler
Engineering Specs
Specifications & Recommended Equipment
Factory tested airframe benchmarks, electrical power combos, and center-of-gravity parameters.
Airframe Specifications
- Wing Span
- 25.5 inches (700mm)
- AUW (All Up Weight)
- ~850-1000g
- Weight Without Battery
- 600gms
- CG Location
- 5.25in / 133mm from Leading edge of rudder
- Material
- Fliteboard Pro (4 Nos) & Aeroply
Recommended Equipment
- Motor
- 2300kv-2800kv Motor / EDF 1000-1200W
- Minimum Thrust
- 1100gms
- EDF Power
- 1000-1200 Watts (70mm EDF optional)
- ESC
- 40-60 amps (Pusher) / 75-90 amps (EDF)
- Battery
- 2200-3300 mAH 4s
- Servos
- (2) 9 gram servos (Metal Gear for Thrust Vectoring)
- Control Throws
- Elevons: 9° - 12° (Expo: 40°)
- Skill Level
- Advanced
Unbox Inspection
What's Inside the Box
Complete inventory included in every kit. Every sheet is precision laser-cut with micro-tabs.
What's Included in the Kit (14 Items)
Fliteboard Pro (4 Nos)
Pushrods (4pcs) 10cmx2, 40cmx2
Pushrod Guide Tube (2)
Aeroply Parts
Pushrod Connectors (2)
Posterboard Exhaust Tube
Thrust Vectoring Mount
Velcro
Paper knife
FT-Elements Firewall
Wire Set for Thrust Vectoring (3Pcs)
Decals
Control Horns (2)
Data Sheet
Precision Laser-Cut Airframe Sheets (8 Sheets)
Sheet #1: Laser Cut Fliteboard Pro Right Wing (Sheet A)

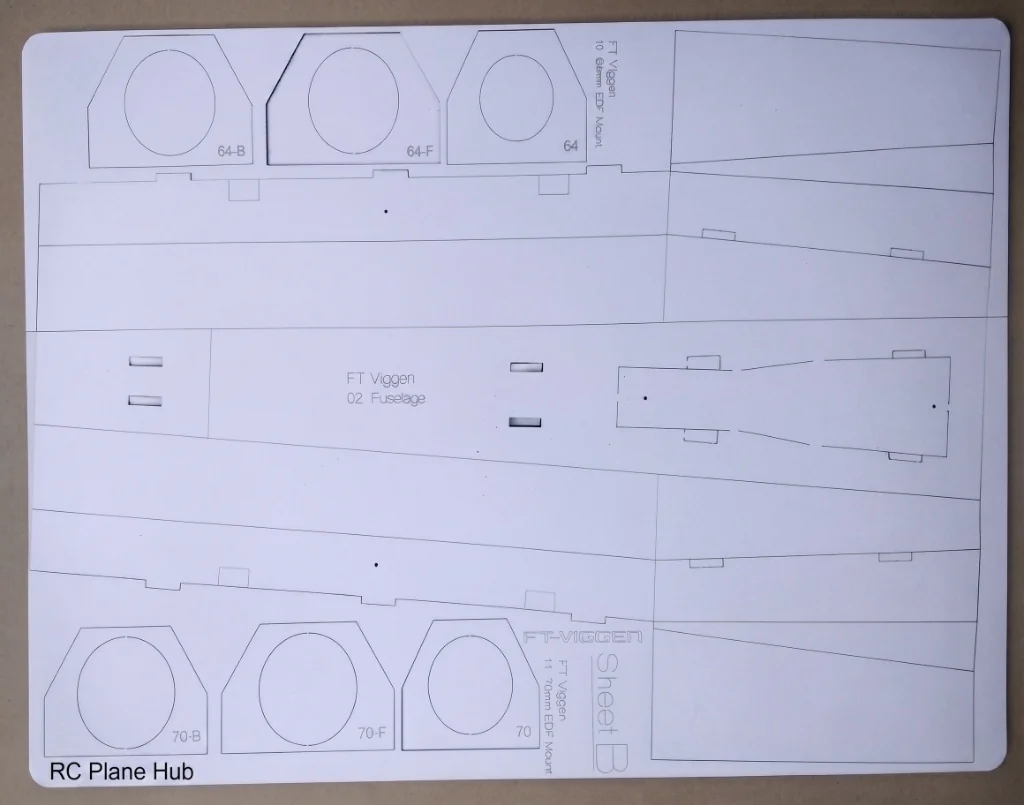

Sheet #2: Laser Cut Fliteboard Pro Sheet B (Fuselage)

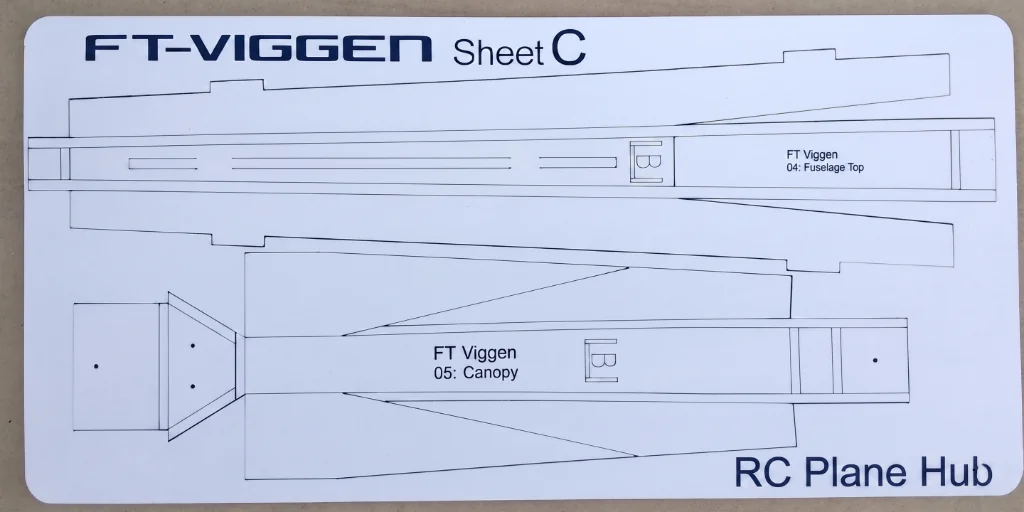

Sheet #3: Laser Cut Fliteboard Pro Sheet C (Fuselage Top / Canopy)
Sheet #4: Laser Cut Fliteboard Pro Sheet C2 (Canopy Doubler)
Sheet #5: Laser Cut Fliteboard Pro Sheet D (Vertical Fin)

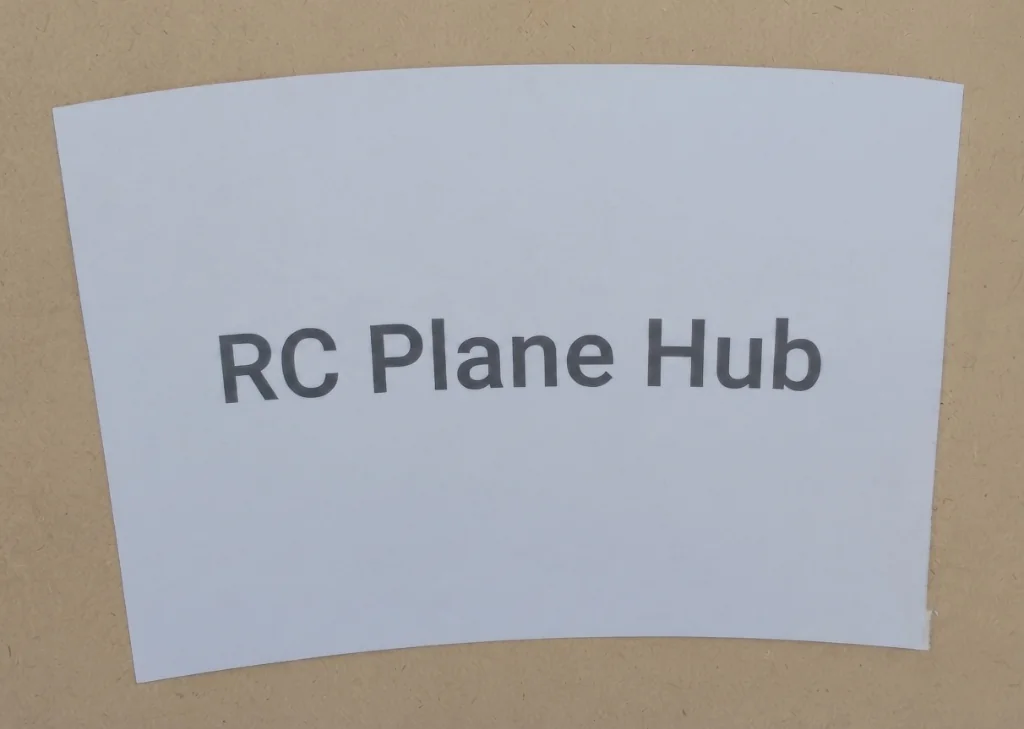

Sheet #6: Exhaust Shroud Cut Template

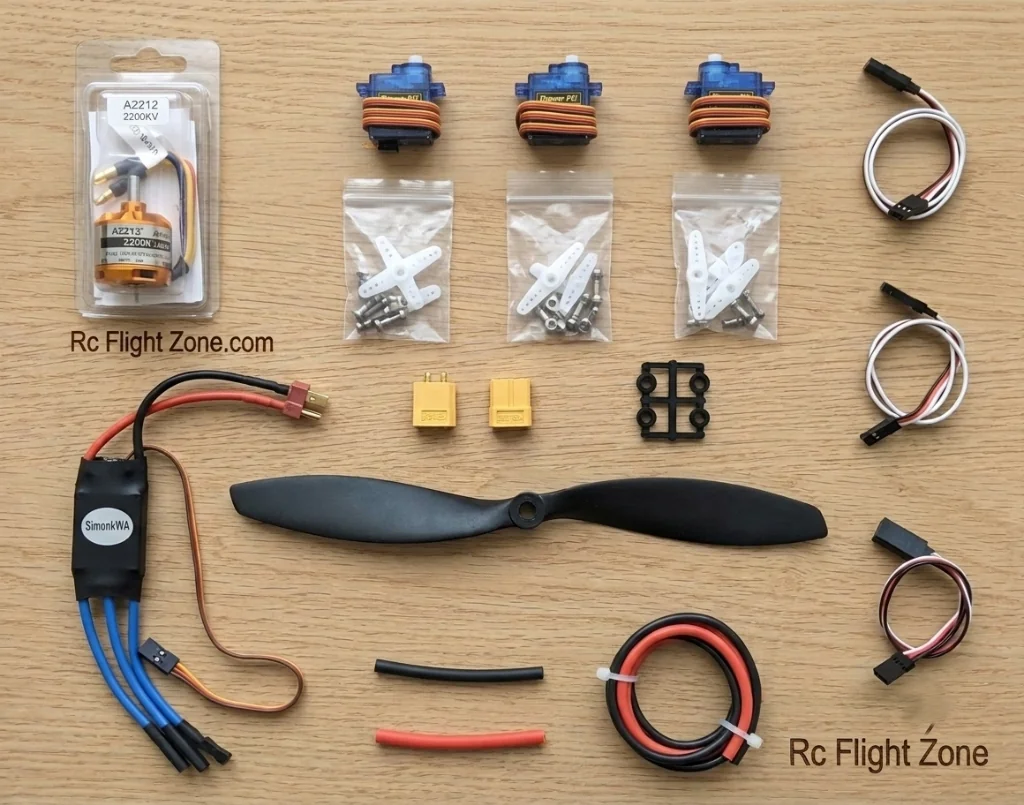

Sheet #7: Hardware Accessories Pack
Sheet #8: Recommended Electronics Components
FT-Viggen Aircraft CG Specs & Calculation Docs
Reference wingspan (700 mm (25.5 in)), MAC formulas, and factory fingertip balance marks.
Pre-Flight Maiden Checklist
Run the 10-point field checklist before launching FT-Viggen Aircraft on its first voyage.
